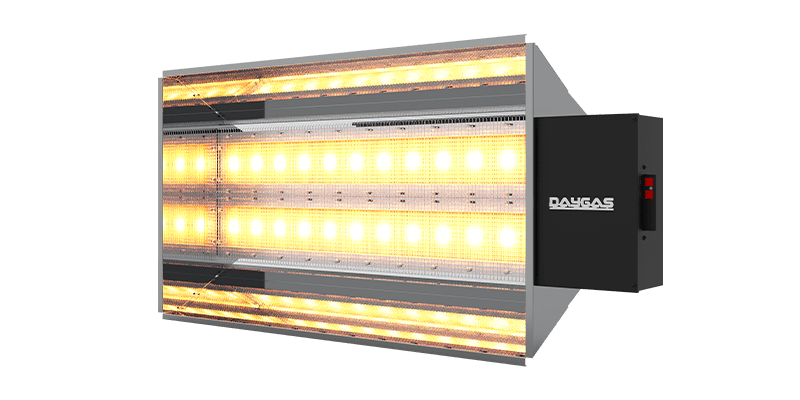

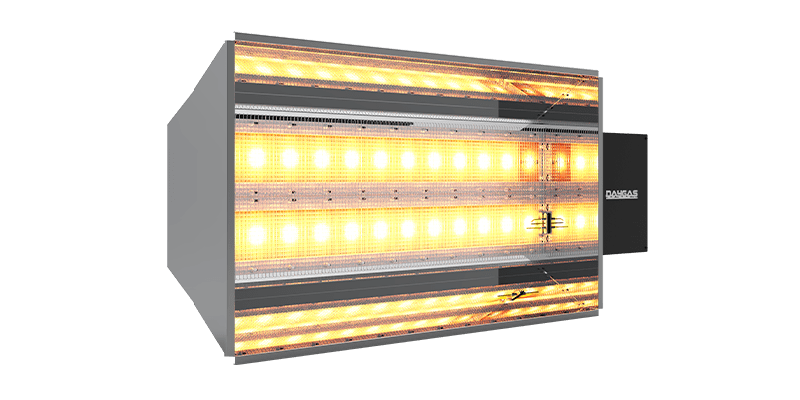

DSR 56 Industrial Edition / Plus
Daygas brings together efficient, economical, quality and functional products that give importance to innovation and R&D studies, thus saving energy in the heating sector, with final consumers.
Product Features
- Thermal effect
- Energy savings
- Freeze Protection
- High level of security
- Safe gas valve system
- Service and installation
- Low energy consumption
- Ease of start-up in a short time
- Local temperature control possibility
- 2-stage, 5-stage operation with remote control
- 1300°c Special color options resistant to temperatures up to
- Step notification on display screen and the possibility of manual control
| Capacity | 56 kW |
| Gas Consumption | NG 5,32m³/h / LPG 3,94 kg/h |
| Dimensions | 710h / 1440L / 410w |
| Weight | Net 51,85kg / Gross 58,3kg |
| Operating Pressure | 21-55mbr NG / 32-55mbr LPG |
| Heating Area | min 80m² /avg 100m² / max 135m² |
| Stage | Standard 2 / Plus 5 |
| Ceramic Plate | 24 pcs |
| Electrical Connection | 230-240VAC 50-60Hz +/-%15 |
| Gas Connection | G ¾’’ |
| Installation On Height | 350-1200cm |
| Parcel Dimensions | 730h / 1470L / 450w |
documents:
DSR Ceramic Radiant Heaters
Special design with high heat capability Daygas ceramic stone, effective and economical power in local heating solutions…
- Technology from the sun.
- All metal components are high temperature resistant and long lasting.
- All electrical components consist of high heat resistant non flammable silicone cables.
Ceramic Stones
Daygas ceramic radiant devices use special edition Daygas ceramic stones. The radiant wavelength must be within the infraredrange. This is because the ceramic stone surface area is radiated in accordance with the desired conditions, the selection and quality of the stoneare very important.
Device Controls
There are different scenarios and control elements related to controlling the devices.
If we express under the main headings;
- Remote control.
- Integration via control board.
- Pako switched manual control.
- Thermostat-switchedautomaticcontrol.
- Integration into the automation system. (Control via Scada)
The variety of control scenarios offered as 5 different alternatives allows the products to be managed correctly and in adesired way. The most appropriate control scenario is selected by evaluating the on-site use of the devices in our product range and the site conditions. Therefore, the control with the right solution scenario facilitates both fuel savings and long-lasting trouble-free service.
Integration to Automation System (Control over Scada)
Our devices can be integrated directly into building automation systems (bms) via modbus communication protocol via RS485 port (internal), or if there is no bms system available, the control of the devices can be used fully automaticallyfrom a single center via HMI touch panel or a PC.
In the BMS System;
- Operation order of the devices on the specified days and hours,
- Operation of the heaters with regional or individual step and modulation control,
- Seeing the fault codes from the devices in the system and which device is the problem and keeping it in memory,
- Functional controls such as instant, daily, weekly or monthly monitoring of fuel consumption are the advantages of the automation integrated system.
Control Panel
- Password protection.
- Heat preservation mode.
- Freeze protection feature.
- 24/7 programmable feature.
- 128 x 64 graphic LCD display.
- Communication port with computer.
- Possibility of automatic and manual control.
- Ability to connect external temperature sensor.
- Possibility to control 8 independent zones and 32 devices in total.
It makes your work easier thanks to many commands, from the command to turn the devices on and off on the working days and at the time intervals you want, to keep the environment warm in the temperature range determined for freezing protection when the business is closed.
Analog Room Thermostat
Daygas analog room thermostat automatically turns off the device when the temperature value you have set is approached, and then when the ambient temperature drops below the desired temperature value, the device
automatically switches on at the maximum level and starts working again. In this way, it saves fuel.
Temperature Sensor
- Freeze protection mode.
- Possibility of modulating control.
- Temperature adjustment via the device.
When your devices approach the temperature you programmed with the Daygas temperature sensor, it provides fuel saving by reducing the modulation value of the device according to the weather conditions. When the environment reaches the desired temperature value, the device automatically shuts down, and then when it falls below the desired value, the device automatically switches on at the temperature level most suitable for the environment and starts working again.
Pako Switched Manual Control
With pako switched control, step adjusted manual control can be provided over the pako. For more local solutions where there is no control panel or it is not needed, the devices can be operated at the desired level via the paco switch. The heaters can be controlled with an independent step setting. Since the device is not powered on stand – by (0) position on the Pako, the device to be turned off goes to sleep after the closing procedures and thus long service
life of the devices is ensured.
Remote Control
Daygas remote controls are simple-to-use control devices with 3 buttons and easy functions. Thanks to the Daygas remote control, all functions of the device such as on-off, heat setting up-down and reset can be easily controlled.
All Daygas products can be controlled remotely with a single remote.
